Hydrogenated Terphenyl, YC-HTF-2

Equal to Therminol 66

Hydrogenated terphenyl based heat transfer fluid is suitable for furnace that is working at normal pressure and temperature ranging from 280-345 ºC, which is recommended as a result of its thermal dynamic research.
This heat transfer fluid is applicable to most of the high temperature heat exchange process, such as the production of polyester, organic silicon, oxidation, polymerization, distillation. It’s used for transferring or removing the heat of process materials.

Specification

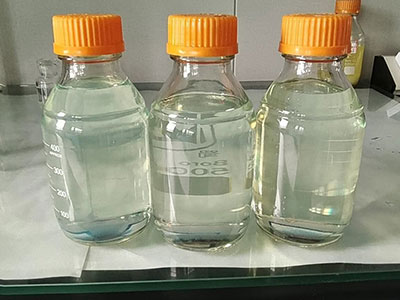

Appearance Clear pale yellow liquid
Chemicals components Terphenyl hydrogenated
Moisture 200 ppm max
Acidity mgKOH/g 0.01 max
Flash point (close cup） Above 170 ºC
Fire point 216 ºC
Spontaneous combustion point 374-400 ºC
Kinematic viscosity (typical) at 40ºC 27-31 cst
Density 20 ºC 0.950-1.006 g/ ltr
Carbon residue 0.01% max
Corrosion to copper (100 ºC, 3h)/grade 1 max
Heat expansion coefficient 200 ºC 0.000819/ ºC
Pour point -32 ºC
Pumping 2000 mm2/s -3 ºC
Pumping 300 mm2/s 11 ºC
Distillation range 10% 90% 348 ºC 370 ºC
Boiling point 359 ºC
345 ºC Heat of vaporization 272 kJ/kg
Operating range 0-345 ºC
Max. oil film temperature 375 ºC max

*The above listed typical data, and test data vary from samples.
Equal to Therminol 66, etc.

Packing

200kgs/drum, or 20mts per ISO tank.
